Torpedo High Flow Filter
High Flow Filters

Torpedo High Flow Filter

A 6 inch OD, 60 inch string wound high flow element up to 500 GPM that replaces pleated Pall, 3M, and Parker elements.

Quoted per order
Request a QuoteDownload Spec Sheet

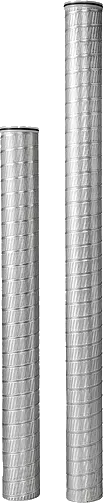

The Torpedo Series from Coleman Filter is a 6" OD string wound element 60" in length, with other lengths available. It provides more depth (up to 1,100 cubic inches) to trap and remove a larger volume of particles than pleated competition. Depending on the micron, flow rates up to 500 GPM (at 150 PSI) can be achieved per filter. These elements replace elements from Pall, 3M, FTC, Fil-Trek, Parker, Shelco, Jonell, PecoFacet, Global, and others.

When competing head to head with any pleated filter, the Torpedo outperforms them by multiples of five or more. If you are using a pleated filter in these applications, expect savings in filter consumption cost plus reduced downtime, maintenance, and labor.

Applications include
  • Industrial Municipal Water
  • RO Prefiltration
  • Frack Flowback
  • Frack Delivery
  • Coil Tubing / Mixing Plant
  • Production Disposal
  • Well Protection
  • Pump Protection
  • Recycle / Reuse
  • Commercial SWD

Specifications

Media options
Bleached Cotton, FDA Bleached Cotton, Natural Cotton, Polypropylene, FDA Polypropylene, Fibrillated Polypropylene, Fiberglass, Rayon, Polyester, Nylon
Core
Tin, 304 Stainless Steel
End caps
Polypropylene
Outside diameter
6" (6.0")
Lengths
40", 60", 80"
Recommended change-out
35 PSID
Flow rate
300-500 GPM (depending on fluid type and micron)

For pricing and availability, tell us your application and volume.
